High Throughput Ethernet Switching Capacity ・28-port with 24-port GbE RJ45, and 4-Port 10G Base-R(SFP/SFP+) fiber ports. ・Powerful 800MHz MIPS-34Kc processor ・Energy-Efficient Ethernet for power saving ・Non-blocking switch fabric design ・8 flexible Class of Service(CoS) queues, 1K Multicast Groups for video applications ・16K MAC address table, 10KB Jumbo Frame |
Cyber Security ・MAC/IPv4/IPv6 Access Control List (ACL) ・DHCP Snooping, IP Source Guard, Dynamic ARP Inspection ・802.1Q VLAN, Port Security ・ Multi-Level user passwords ・ TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security ・ 802.1X MAB for non-802.1X compliant end devices ・ RADIUS/TACACS+ centralized password authentication |
|
Layer 2+ Switch and Router ・Layer 2+ IP Routing includes, Static Route and Dynamic Routing protocols, RIP, OSPF ,and VRRP •ITU-T G.8032 v1/v2 ERPS Standard Ring Redundancy protocol
•Less than 50ms recovery time, seamless restoration time
•Inter-Operability with 3rd party industrial switch and still remain fast recovery time
•Replace Ring + Chain + Dual Homing
|
Industrial Grade Management ・Various configuration paths, including WebGUI, CLI, SNMP and RMON ・ Command line interface (CLI) for quickly configuring major managed functions ・ SNMPv1/v2c/v3 for different levels of network management ・ RMON enables proactive monitoring, real-time insights, and efficiency. ・Surveillance VLAN simplify the deployment of network security monitoring systems by isolating monitoring traffic from data traffic, while improving security and improving network performance. ・ LLDP and LLDP-MED enhance device discovery, automate network configuration, improve interoperability, and support location-based services. |

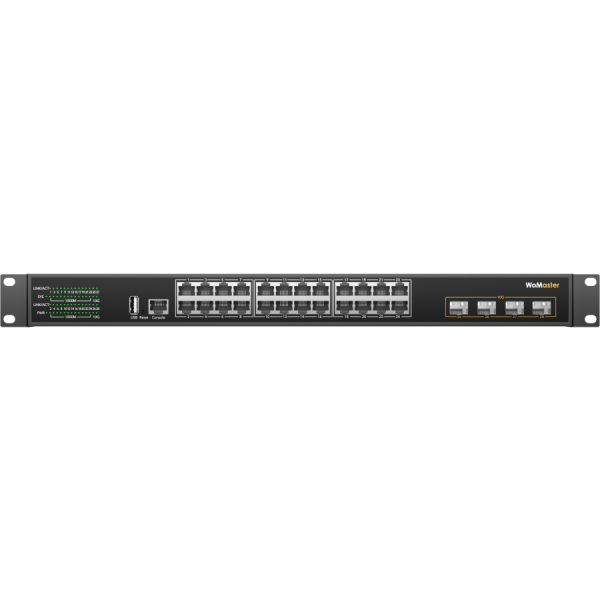

IRS628XG-4XGF
The IRS628XG-4XGF is a high-performance 10G Layer 2+ rackmount switch designed for surveillance, enterprise, industrial automation, and high-bandwidth applications. It features 24 Gigabit ports and four 10G fiber SFP ports for fast, reliable data transmission.
With Layer 2+ IP routing, Surveillance VLAN, and LLDP-MED, it optimizes video traffic and device management. Ideal for IP surveillance, enterprise networks, smart cities, industrial automation, and data centers, it ensures seamless connectivity.
Built for reliability, it supports ERPS, RSTP, and MSTP for network redundancy and includes advanced cybersecurity features like DHCP Snooping and IP Source Guard.
| Technology | |
| Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3u 100Base-FX Fast Ethernet Fiber | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet copper | |
| IEEE 802.3z Gigabit Ethernet Fiber | |
| IEEE 802.3x Flow Control and back-pressure | |
| IEEE 802.3az (Energy Efficient Ethernet) | |
| IEEE 802.1p Class of Service (CoS) | |
| IEEE 802.1Q VLAN and GVRP | |
| IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1S Multiple Spanning Tree Protocol (MSTP) | |
| IEEE 801.1AX/802.3ad Link Aggregation Control Protocol (LACP) | |
| IEEE 802.1x Port based Network Access Protocol | |
| ITU-T G.8032 version 2 Ethernet ring protection switching(ERPSv2) | |
| Performance & Scalability | |
| Switch Technology | Store and Forward Technology with 176Gbps Non-Blocking Switch Fabric Forwarding rate: 95.23Mpps |
| CPU | 800MHz MIPS-34Kc |
| RAM | 2GB |
| Packet Buffer Memory | 12Mbits |
| Number of MAC Address | 16K |
| Jumbo Frame | 10K Bytes |
| VLAN | 4K VLANs |
| IGMP Groups | 1K |
| Traffic Prioritize | 8 Priority Queues per Port |
| Interface | |
| Ethernet Port | 24 x 10/100/1000M RJ45, Auto Negotiation 4 x 10G Base-R (SFP/SFP+), DDM Energy-Efficient Ethernet for power saving |
| System LED | Ready : Green On |
| Power LED | Red On |
| Giga Ethernet Port LED | Link (Green On), Activity (Green Blinking), Speed 1000M(Amber On), Speed 10M/100M(Amber Off) |
| 10G SFP Port LED | Port: Link (Green On), Activity (Green Blinking),Speed 10G(Amber On), Speed 1000M(Amber Off) |
| Reset | Default Settings Reset(over 7 Seconds) |
| Console | 1 x RJ45 based RS232 for System Configuration. Baud Rate: 115200.n.8.1 |
| Power Requirement | |
| Operating Voltage | AC Input: AC 100~240VAC, 50/60Hz |
| Power Consumption | System idle: 12.7W;System full loading: <40W |
| Software | |
| Management | WebGUI, Command Line Interface (CLI), IPv4/IPv6(RFC2460), Telnet, SNMP v1/v2c/v3, SNMP Trap/Informs, RMON, LLDP, DHCP Server/Client/Option 43/Option 82, TFTP, System Log |
| Traffic Management | Flow Control, Rate Control, Port Mirror, CoS, QoS |
| Filter | IGMP Snooping v1/v2/v3, IGMP Snooping Fast-Leave/Immediate-Leave, MLD Snooping, MVR, IGMP Query,IEEE802.1Q VLAN, QinQ, GVRP, Voice VLAN, Surveillance VLAN |
| Security | IEEE 802.1X/RADIUS, TLS v1, HTTPs/SSH |
| Advanced Security | TACACS+, Mutli-user authentication, IEEE802.1x MAB, DHCP Snooping/IPSG, Dynamic ARP inspection, DoS, Adv. Port security |
| Redundancy | ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPSv2), Loop Protection, Port Trunk/801.1AX/802.3ad LACP, Rapid Spanning Tree Protocol/Spanning Tree Protocol (RSTP/STP), Multiple Spanning Tree Protocol (MSTP),VRRP |
| Time Management | NTP |
| Layer 2+ | Routing: RIPv2, OSPFv2, Static Routing (100 entries) |
| Mechanical | |
| Installation | Rackmount |
| Enclosure Material | Steel Metal |
| Dimension | 440(W) x 44(H) x 280(D)mm |
| Weight | 3KG |
| Cooling | FAN : Forced-Air Cooling |
| Environmental | |
| Operating Temperature & Humidity | -10°C~50°C , 10%~90%RH |
| Storage Temperature | -40°C~75°C, 5%~90%RH |
| MTBF | 100,000 hours |
| Warranty | 1 year |
| EMC&INGRESS PROTECTION | |
| Surge | Power：Common mode：4KV;Differential-Mod：2KV Ethernet Port：Common mode：4KV;Differential-Mod：2KV |
| ESD | Contact:8KV；Air:15KV |
| Free Fall | 0.5m |
Ordering Information
| Model Name | Description |
| IRS628XG-4XGF-E/U/UK | Rackmount L2+ Managed 10G Ethernet Switch, 24 Ports Giga Copper + 4 Ports 1G/10G SFP+ slots, AC100~240V input |
| Package List | |
| 1 x Product Unit (Without SFP Transceiver) | |
| 1 x Power Cord EU or US or UK | |
| 1 x Quick Installation Guide |
Optional Accessory
| Item | ||||
| SFPGEM05DT | 1000M | 550M | Multi | SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C |
| SFPGES10DT | 1000M | 10KM | Single | SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C |
| SFPGES30DT | 1000M | 30KM | Single | SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C |
| SFPXGM03D | 10G | 300M | Multi | SFP+, 10Gbps, LC, multi-mode, DDM, 300M, 0~70°C |
| SFPXGM03DT | 10G | 300M | Multi | SFP+, 10Gbps, LC, multi-mode, DDM, 300M, -40~85°C |
| SFPXGS10D | 10G | 10KM | Single | SFP+, 10Gbps, LC, single-mode, DDM, 10KM, 0~70°C |
| SFPXGS10DT | 10G | 10KM | Single | SFP+, 10Gbps, LC, single-mode, DDM, 10KM, -40~85°C |
